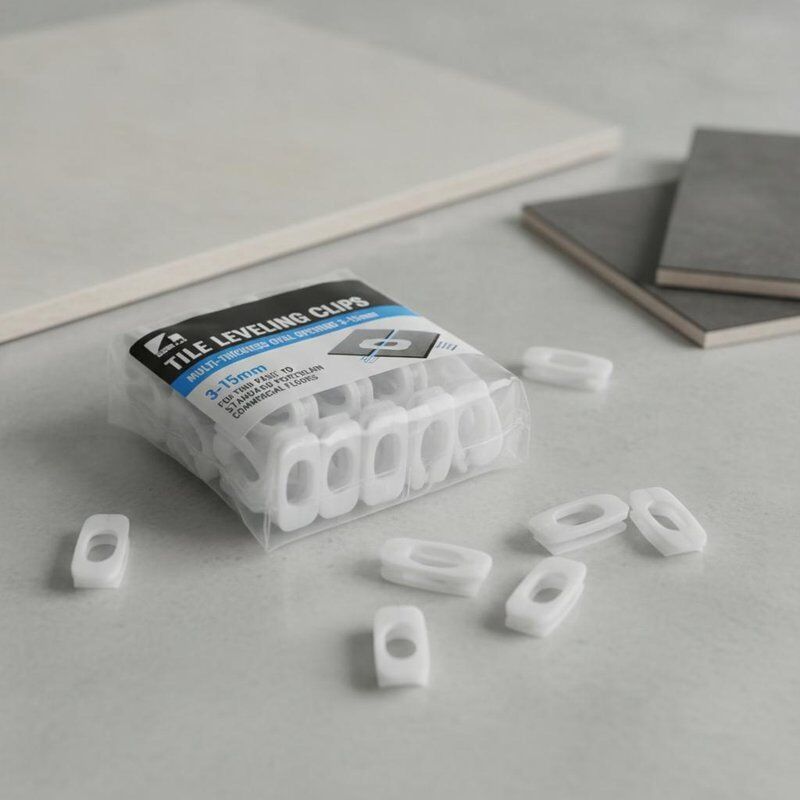

Multi-Thickness Oval Opening Clip — One Clip Model from 3mm Thin Panel to 15mm Commercial Porcelain
The YF-TLC-OO covers the full commercial tile thickness spectrum — from 3mm thin porcelain panels to 15mm standard commercial porcelain — with a single clip body. The 18mm opening height accommodates this range without requiring contractors to switch clip models when project specifications mix tile thicknesses.
Thin porcelain panels (3-6mm) require gentle clamping — excessive pressure cracks the panel. The lighter weight grades (110g-130g per bag) apply proportionally less clamping force, making them inherently safer for thin-panel work while still providing sufficient hold for 12-15mm commercial tiles when paired with the TLW-87 wedge.
Joint Width Specifications
| Joint Width |
Recommended Application |
| 1.0mm |
Rectified porcelain, thin-joint |
| 1.5mm |
Contemporary commercial |
| 2.0mm |
Standard ceramic/porcelain |
| 2.5mm |
Heavy-traffic commercial |
| 3.0mm |
Natural stone, exterior paving |
Technical Specifications
| Parameter |
Value |
| Clip Weight |
1.1-2.0g (4 weight grades) |
| Top Width |
34mm |
| Total Height |
36mm |
| Material |
100% Virgin PP |
| Break-off Design |
Calibrated fracture point below tile surface |
| Suitable Tile Thickness |
3-15mm |
Why One Clip for All Thicknesses Matters
- Eliminates clip model confusion: Contractors previously stocking separate clips for thin panels (3-6mm) and standard tiles (8-15mm) now stock one model. No risk of crew grabbing wrong clip for wrong tile.
- Safer for thin porcelain panels: Lighter weight grades apply less force — reduced risk of edge cracking. For ultra-thin panels under 3mm, contact us about custom configurations.
- Works with standard adhesive systems: 18mm opening accommodates thin-set beds from 3mm to 12mm+. No special adhesive or trowel requirements.
Product Highlights
- 3-15mm thickness range in one model: From the thinnest commercial panels to heavy-traffic floor tiles — one clip, one tool, one workflow.
- Lightweight grades for thin-panel safety: 110g-130g per bag options apply gentler clamping — reduced risk of edge cracking.
- Five joint widths available: Same thickness compatibility across all spacer specs. 1.0mm with thin panel, 3.0mm with stone — identical clip body.
FAQ
Q: Can the same clip handle both 3mm panels and 12mm tiles?
A: Yes. 18mm opening height accommodates both. Use appropriate notched trowel depth for each thickness.
Q: Is clamping force adjustable for thin panels?
A: Lighter weight grades (110g-130g) naturally apply gentler force. We recommend manual wedge pressure rather than pliers for initial tightening on thin panels.
Q: What adhesive for mixed-thickness projects?
A: Follow adhesive manufacturer specification for your tile format. Clip is compatible with all standard cement, polymer-modified, and epoxy mortars.
Q: Can I use this with uncoupling membranes?
A: Yes. Clip sits in adhesive bed above the membrane. Ensure membrane is fully bonded before tile installation.
Q: Minimum tile thickness for reliable performance?
A: 3mm. For sub-3mm tiles, the 18mm opening leaves clip body extending significantly above the surface. Contact us for custom solutions.
