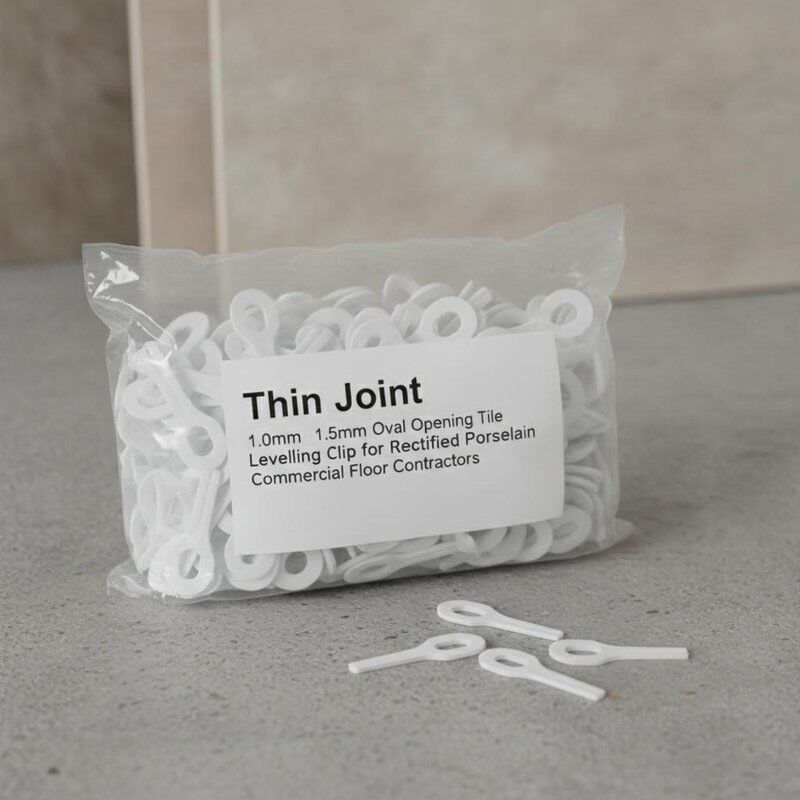

1.0mm Thin Joint Oval Opening Tile Leveling Clip for Rectified Porcelain Commercial Flooring
  • 1.0mm Thin Joint Oval Opening Tile Leveling Clip for Rectified Porcelain Commercial Flooring

1.0mm Thin Joint Oval Opening Tile Leveling Clip for Rectified Porcelain Commercial Flooring

Place of Origin Hebei, China (Mainland)
Brand Name YiFang
Certification SGS,TUV,ISO9001
Model Number YF-TLC-OO
Product Details
Clip Type:
Oval Opening
Available Joint Widths:
1.0mm / 1.5mm / 2.0mm / 2.5mm / 3.0mm
Clip Weight:
4 Weight Grades: 110g / 130g / 160g / 200g Per 100pcs Bag
Material:
100% Virgin PP (Polypropylene)
Suitable Tile Thickness:
3-15mm
Package Quantity:
100pcs / Bag
Thin Joint Performance:
1.0mm Spacer Tab With ±0.05mm Tolerance For Rectified Porcelain
Surface Protection:
Smooth PP Contact Surface — No Scratching On Polished Porcelain Edges
Primary Application:
Thin-joint Commercial Flooring: Hotels, Lobbies, High-end Retail
Highlight:

1.0mm Thin Joint Tile Leveling Clip

,

Oval Opening Tile Leveling System

,

Rectified Porcelain Tile Alignment Clip

Payment & Shipping Terms
Minimum Order Quantity
1000 Bag/Bags
Price
0.38-0.58 USD/Bag
Packaging Details
100pcs/bag
Delivery Time
7-15 work days
Payment Terms
L/C, T/T, Western Union
Supply Ability
20000 Bag/Bags per Day
Product Description

Thin Joint Oval Opening Clip — Precision for Rectified Porcelain Commercial Flooring

For contractors who regularly install rectified porcelain tiles, the YF-TLC-OO 1.0mm and 1.5mm joint widths deliver the near-seamless grout lines that modern commercial interiors demand. The Oval Opening design provides the clamping force needed to maintain those tight tolerances across large floor areas, while the complete 1.0-3.0mm range ensures the same clip model can handle project specifications that mix thin and standard joints.

Each batch undergoes verification testing to confirm consistent break-off performance — critical for thin-joint work where excessive wedge pressure can chip precisely cut tile edges. The Oval Opening guides wedges smoothly into position without the lateral scraping that can occur with narrow-slot clips on delicate rectified porcelain.

Joint Width Specifications

Joint Width Recommended Application
1.0mm Rectified porcelain, ultra-thin joint commercial interiors
1.5mm Contemporary commercial, multi-residential projects
2.0mm Standard ceramic/porcelain
2.5mm Heavy-traffic retail, hospitality
3.0mm Natural stone, rustic ceramic, exterior paving

Technical Specifications

Parameter Value
Clip Weight 1.1-2.0g (4 weight grades: 110g/130g/160g/200g per 100pcs bag)
Top Width 34mm
Total Height 36mm
Opening Height 18mm
Opening Width 22mm
Material 100% Virgin PP
Break-off Design Calibrated fracture point below tile surface
Suitable Tile Thickness 3-15mm

Why Thin-Joint Projects Demand Quality Clips

  • 1.0mm spacer molded to ±0.05mm tolerance: Rectified porcelain tiles have precisely cut edges — the spacer must match that precision. A 0.1mm deviation creates visible inconsistency in thin-joint installations.
  • Calibrated break-off prevents edge chipping: Each batch verified for consistent break-off performance. The clean fracture point is positioned below the tile surface — critical when thin joints leave no margin for error.
  • One clip model across joint widths: If a project section switches from 1.0mm field tiles to 3.0mm border stone, crews use the same clip with the appropriate spacer — no tooling change, no inventory confusion.

Product Highlights

  • Oval Opening guides wedge precisely: The elliptical opening positions the wedge at the optimal angle for thin-joint work, reducing the risk of over-tightening that can crack thin porcelain edges.
  • 15-year manufacturing heritage: Produced in an ISO 9001 facility with full batch traceability. Technical data sheets available for project submittals specifying YiFang clips.
  • 3-15mm tile thickness range: Covers thin porcelain panels (3-6mm) through standard commercial porcelain (10-12mm) — one clip model for the full thickness spectrum.

FAQ

Q: Is the 1.0mm spacer accurate enough for premium rectified tile projects?
A: Yes. For even finer control, our YF-TLC-SA model provides a 0.35mm spacer option. Contact us for specifications.

Q: What is the clip spacing recommendation for thin-joint installations?
A: For tiles up to 600×600mm, 2 clips per side. For 600×1200mm, 3 clips per side. Clips should be positioned at least 50mm from corners.

Q: Can this clip be used with underfloor heating?
A: Yes. Virgin PP is thermally stable up to 40°C operating temperature — well within hydronic and electric radiant heating limits.

Q: Do you provide batch certification for project documentation?
A: Yes. Each order includes a certificate of conformance listing batch numbers, test results, and ISO 9001 compliance. Additional documentation available upon request.

Q: What is the minimum order for thin-joint clips?
A: Standard MOQ is 1,000 bags (100,000 pieces). We recommend ordering at least 15% extra to account for job-site handling and perimeter cuts.
