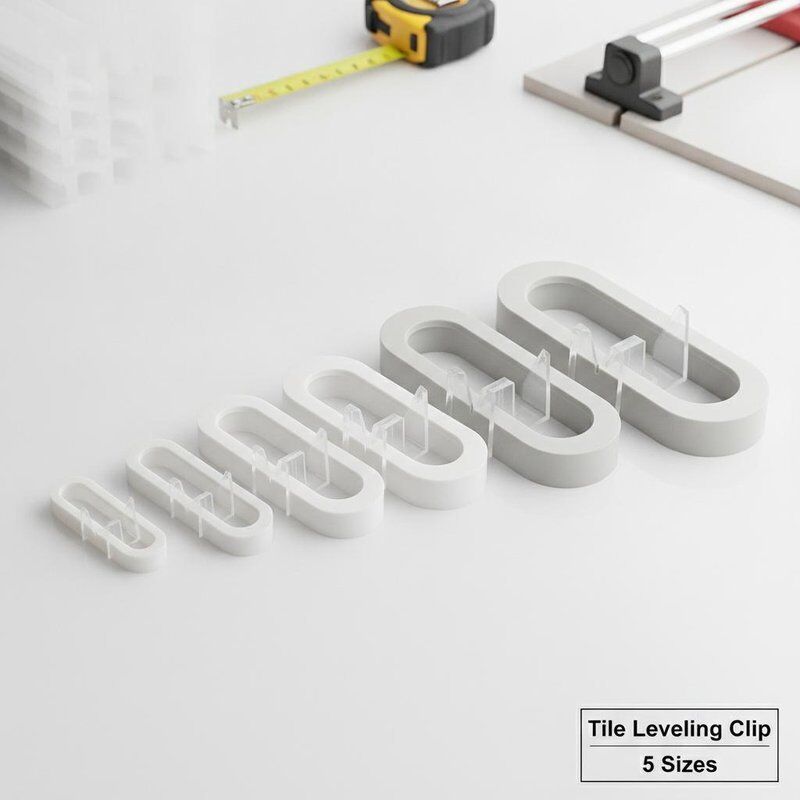

Oval Opening Tile Leveling Clip — Complete Size Range for Commercial Flooring Contractors
The YF-TLC-OO Oval Opening leveling clip delivers five joint width options — 1.0mm, 1.5mm, 2.0mm, 2.5mm, and 3.0mm — in a single lightweight platform. This is the all-in-one solution for flooring contractors who handle diverse project specifications. The Oval Opening guides wedge insertion for faster installation cycles, while the 34mm bridge provides stable clamping across tiles up to 600×600mm.
Each clip is injection-molded from 100% virgin polypropylene in our ISO 9001 certified facility. Every production batch undergoes verification to confirm consistent break-off performance. Since specification changes between projects — one day 1.0mm rectified porcelain, the next 3.0mm natural stone — this single clip model covers all standard commercial flooring requirements without switching clip types.
Joint Width Specifications
| Joint Width |
Recommended Application |
| 1.0mm |
Rectified porcelain, thin-joint commercial interiors |
| 1.5mm |
Contemporary commercial, multi-residential projects |
| 2.0mm |
Standard ceramic/porcelain, highest-volume general purpose |
| 2.5mm |
Heavy-traffic retail, hospitality, institutional |
| 3.0mm |
Natural stone, rustic ceramic, exterior paving |
Technical Specifications
| Parameter |
Value |
| Clip Weight |
1.1-2.0g (4 weight grades: 110g/130g/160g/200g per 100pcs bag) |
| Top Width |
34mm |
| Total Height |
36mm |
| Opening Height |
18mm |
| Opening Width |
22mm |
| Material |
100% Virgin PP |
| Break-off Design |
Calibrated to fracture cleanly below tile surface after curing |
| Suitable Tile Thickness |
3-15mm |
Product Highlights
- One model, five joint widths: Contractors stock a single SKU and deploy the correct spacer for each project specification. Reduces warehouse complexity and crew confusion.
- Oval top opening design: The elliptical guide surface reduces wedge insertion time by 15-20% compared to narrow-slot clips. Faster installation cycles mean more square meters per crew-day.
- ISO 9001 / SGS / TUV certified production: Systematic quality inspection, full batch traceability from raw material to finished product — documentation provided for commercial project submittals.
FAQ
Q: Can I mix joint widths in one order?
A: Yes. We support mixed-SKU containers. Minimum 5,000pcs per width on mixed orders. We provide a consolidated container loading plan optimizing for your mix ratio.
Q: What is the MOQ and lead time?
A: Standard MOQ is 1,000 bags (100,000 pieces). Lead time 7-15 working days. Container orders of 200,000+ pieces may require 15-20 working days depending on current production schedule.
Q: Do you offer OEM/private label?
A: Yes. Custom colors MOQ 50,000pcs per SKU. Private label packaging MOQ 100,000pcs per SKU. Custom mold development available for 500,000pcs+.
Q: Container loading capacity?
A: 20ft: ~200,000pcs. 40ft HC: ~450,000pcs. We provide loading plans for mixed-product containers. Contact us with your order composition for an exact plan.
Q: Are free samples available?
A: Yes. Up to 50pcs per SKU free of charge. Buyer covers express shipping. Contact sales with your delivery address and required joint widths.
