Insulation Stick Pins
>
|
| Place of Origin | Hebei, China (Mainland) |
| Brand Name | YiFang |
| Model Number | YF-ISP1020 |

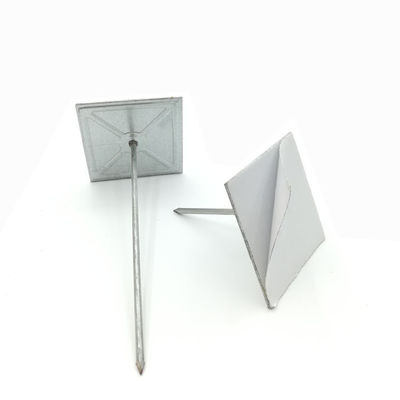

Stainless Steel Self Stick Insulation Pins For Fixing Glass Wool
Product Parameters
Insulation anchor thermal insulation pin specification:
| Item No | Size(mm) |
Pin Diameter(mm) |
Pin Length (mm) |
Washers |
| No.1 | 25*25 | 1.70 | From 20mm to 300 mm are standard | Self - locking washers are available in a variety of sizes, Shapes. and materials |
| No.2 | 35*35 | 2.67&3.00 | From 20mm to 300 mm are standard | Self - locking washers are available in a variety of sizes, Shapes. and materials |
| No.3 | 50*50 | 2.67&3.00 | From 20mm to 300 mm are standard | Self - locking washers are available in a variety of sizes, Shapes. and materials |
warehouse quantity: 150000pcs.
material: galvanized steel
pin size: 2.4mm wire diameter, 70mm length, soft nails
washer type: square self locking washer
washer size: 0.4mmx20mm
a steel pin and double sided self adhesive tape having high shear strength. The use of this pic prevents corrosion on the street metal which is caused by the welding fasteners.
Product Display
Recommended assembly method :
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours.
Pin cover :
Protect people hand from being injured when putting insulation.
Insulation Anchor thermal insulation pin usage :
Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining.
Product Advantages
It has anti-aging, anti-temperature sudden change, anti-corrosion, cold-resistant and heat-resistant; high bearing capacity, high pressure bearing and good tensile performance; it is not easy to deform, moisture-proof, vibration-relieving, and good thermal insulation after loading.
