Plastic Expansion Anchor
>
|
|
| Place of Origin | Hebei, China (Mainland) |
| Brand Name | YiFang |
| Model Number | YF-PEA9090 |
hammer drive anchor countersunk head wall plug with screw material: PP, PE, NYLON
| ANCHOR SIZE | NAIL SIZE | DRILL DIA | PRACT.APPLIC | QUANTITY PER |
| (MM) | MAX (mm) | INNER/OUTER | ||
| 5*30 | 3.5*35 | 5 | 5 | 200/4000 |
| 5*35 | 3.5*40 | 5 | 10 | 200/4000 |
| 5*40 | 3.5*45 | 5 | 15 | 200/4000 |
| 5*45 | 3.5*50 | 5 | 20 | 200/4000 |
| 5*50 | 3.5*55 | 5 | 25 | 200/4000 |
| 6*35 | 4*40 | 6 | 6 | 200/4000 |
| 6*40 | 4*45 | 6 | 10 | 200/4000 |
| 6*50 | 4*55 | 6 | 15 | 200/4000 |
| 6*60 | 4*65 | 6 | 30 | 200/4000 |
| 6*70 | 4*75 | 6 | 40 | 200/4000 |
| 6*80 | 4*85 | 6 | 50 | 100/1000 |
| 8*50 | 5*55 | 8 | 15 | 100/1000 |
| 8*60 | 5*65 | 8 | 20 | 100/1000 |
| 8*80 | 5*85 | 8 | 40 | 100/1000 |
| 8*100 | 5*105 | 8 | 60 | 100/1000 |
| 8*115 | 5*120 | 8 | 80 | 100/1000 |
| 8*135 | 5*140 | 8 | 90 | 100/1000 |
| 10*80 | 7*85 | 10 | 40 | 50/500 |
| 10*100 | 7*105 | 10 | 50 | 50/500 |
| 10*120 | 7*125 | 10 | 80 | 50/500 |
| 10*140 | 7*145 | 10 | 90 | 50/500 |
| 10*160 | 7*165 | 10 | 110 | 50/500 |

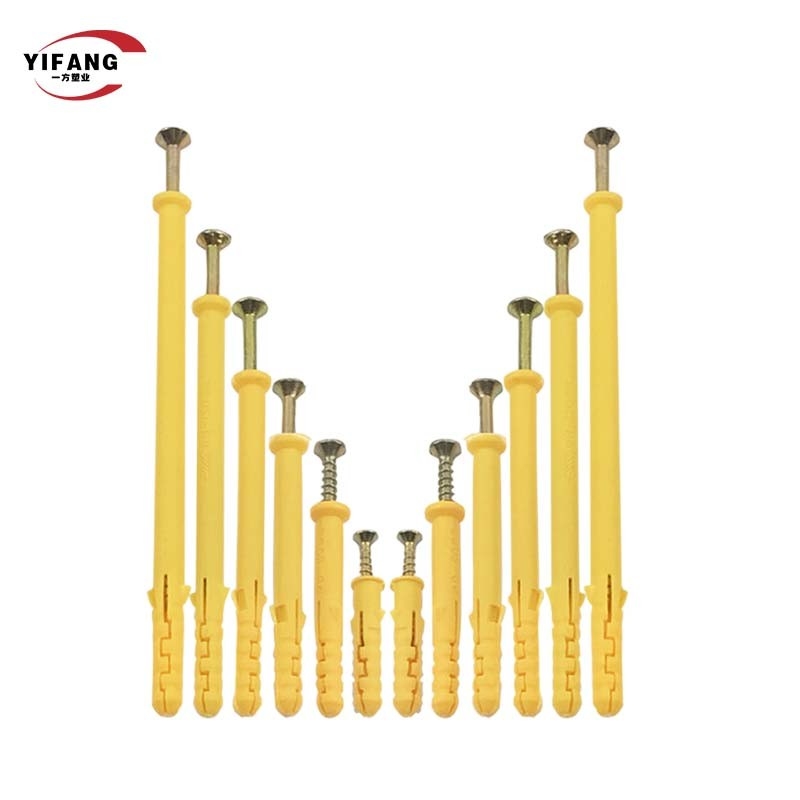

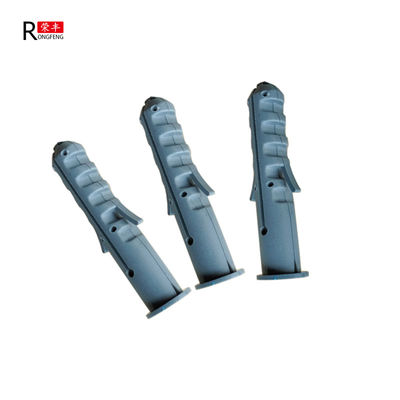

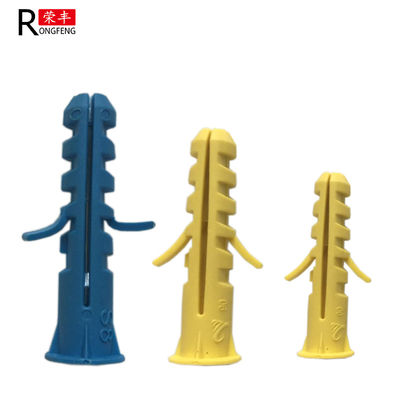

Our sample pictures for a references.
hammer drive anchor countersunk head wall plug with screw machine in our factory.
a. Product packing : 1>. Plastic films + carton+ pallet .
2>. As the client's design .
b. hammer drive anchor countersunk head wall plug payment terms and delivery time :
1>. 30% T/T before goods production, 70% before shipping.
2>. Within 7 working days, when received the payment in advance.
