Anti Corrosion 3003 Alloy Aluminum Spacer Bars For Double Glazed Units

High Frequency Welding Aluminium Spacer Bar for Windows & Doors

Product Description

High Frequency Welding Aluminum Spacer Bar is made of aluminum alloy 3003, adopting international advanced rolling forming and high frequency welding technology. The molecular structure of raw material won’t be damaged compared with cold drawn technology. The production process is through modifying and straightening by mould. The raw material becomes a convex shape which is good for sealing . Last through the porcupine roller, it gains air vents on the wider surface so as to absorb gases inside insulating glass units.

Product Parameters

1. Technology adopted ISO 9001:2008 standard.
2. Aluminum spacer thickness 0.32&0.35mm, anti-corrosion.
3. Unique design profiles, excellent bending property.
4. Unique surface treatment, better sealing properties with sealants.
5. High-frequency induction welded, continuous welding seam quality monitoring by eddy current system.
6. No burr and no deformation after cutting, better for connected.

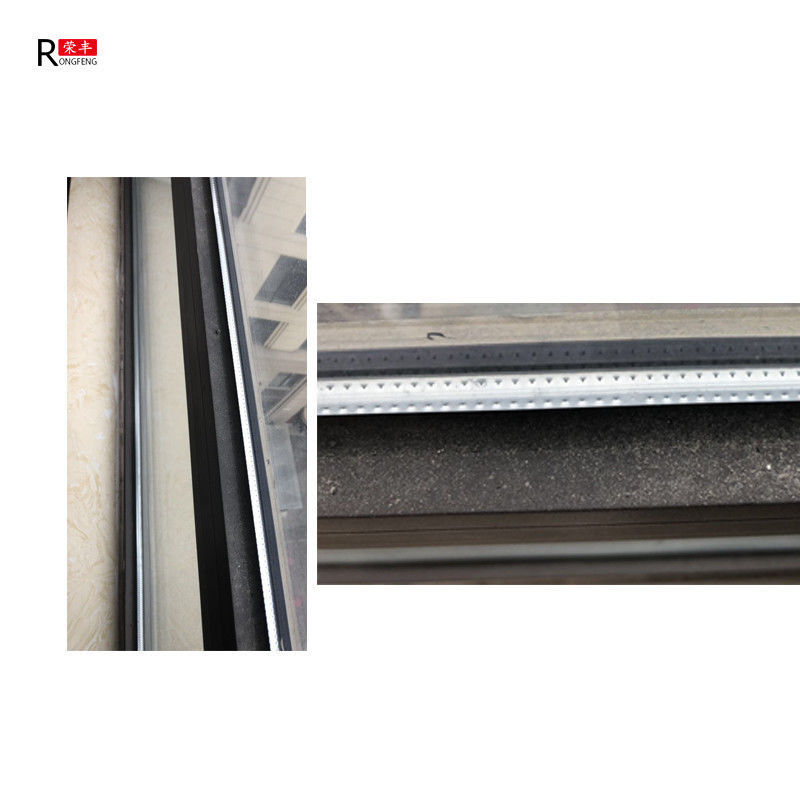

Product Display

Technical Requirements

² Wall thickness: between 0.23~0.4mm (deviation +/-0.025mm).

² Curvature: No hard or lateral bend ( except natural fall).

² Appearance: Flat & neat surface, no bumps, wall-arranged air vents.

Parameter

² Material: 3003 alloy aluminum.

² Spacer specification.

l Height: 6.5mm.

l Width: 6mm, 9mm, 12mm, 15mm or customized.

l Wall thickness: 0.23-0.4mm.

Quality Guarantee

² Whole production line is monitored by computer to ensure procession and stability.

² 100% Well organized vents, ensure good activity of desiccant.

² Neat carton packaging, tidy appearance without twisting or exposure.

Company Introduction


Langfang Yifang Plastic Co.,Ltd. is a manufacturer of insulation nails, plastic discs, The valve of injection molded parts, Anchor bolt and any of the plastic products,with well-equipped testing facilities and strong technical force.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. Welcome new and old customers from all over the word to contact us for future business relationships and mutual success!
